MonoLith™ Cable Puller
Battery System
96V Lithium-Ion Power for Transmission and Distribution Operations
See the SpecsPerformance Specifications
Hover over any specification to explore its performance envelope.
Usable energy for sustained tensioner/puller operations
Peak bus voltage under full charge
Sustained output for conductor stringing loads
Onboard charge rate from external AC or generator
System mass including enclosure and harness
Gravimetric density optimized for field equipment integration
Requirements vs. Delivered
Every program requirement met or exceeded.
| SPECIFICATION | OEM TARGET | MONOLITH™ DELIVERED | STATUS |
|---|---|---|---|
| Nominal Voltage | 96 VDC | 100.8 VDC | EXCEEDED |
| Capacity | >200 Ah | 220 Ah | EXCEEDED |
| Usable Energy | >20 kWh | 23 kWh | EXCEEDED |
| Continuous Current | 200A | 220A | EXCEEDED |
| Temperature Range | -20 to +60°C | -40 to +60°C | EXCEEDED |
| Base Dimensions | 31" x 16" x 16" | 31" x 16" x 16" | MET |
System Architecture
MonoLith™ platform engineered for the tensioner/puller envelope.
Field Operations

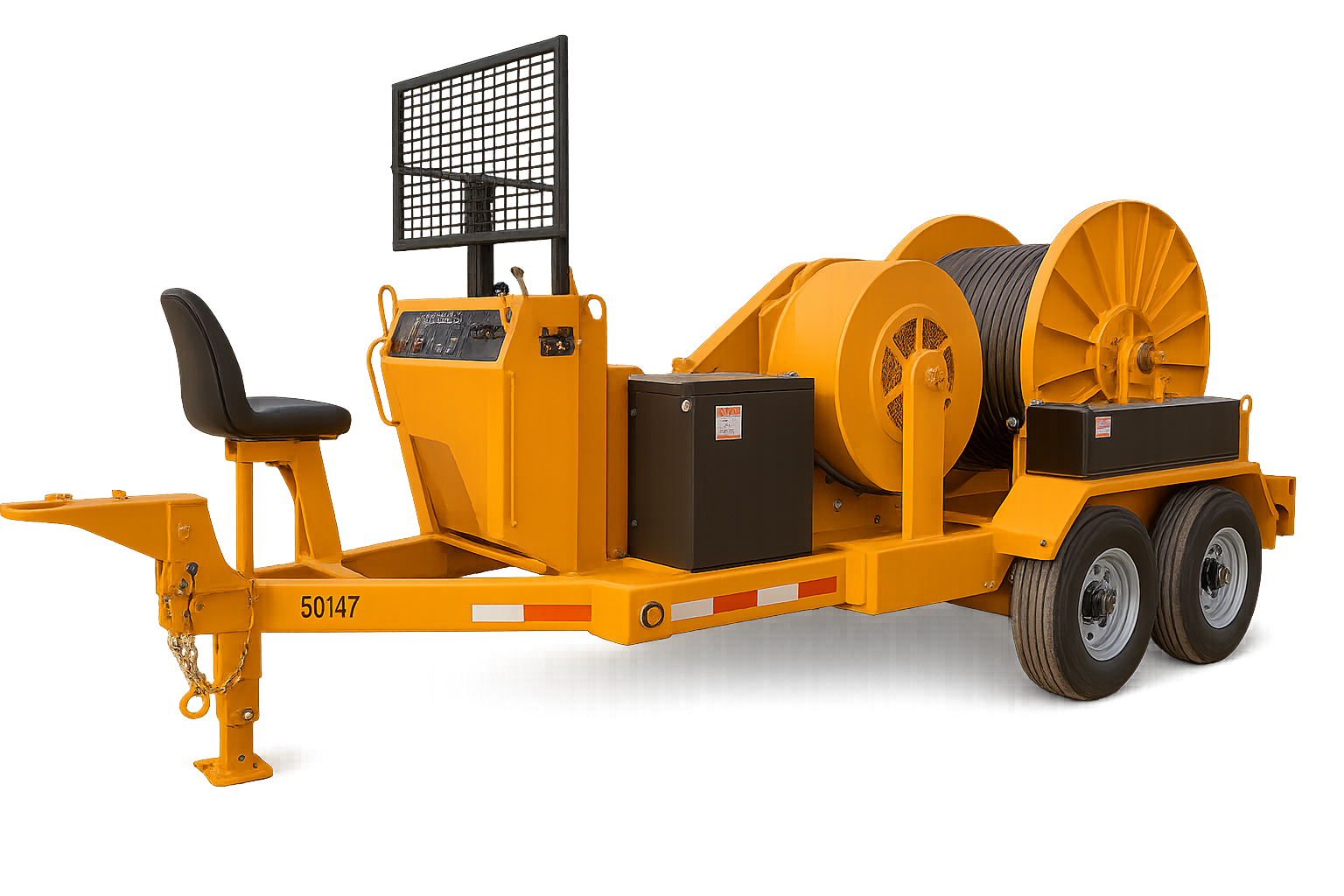

- Engineered for electric tensioner/puller rigs
- Enhanced temperature range: -40°C to +60°C operational
- Ruggedized enclosure for outdoor utility environments
Industrial Performance
- 220A continuous current
- 90 Wh/kg energy density
- 244 kg total system weight
U.S. Final Assembly
- Module-to-pack build in Colorado
- Functional test and quality documentation
- Delivered with full ICD and integration support
Built for a utility infrastructure OEM requiring a drop-in battery upgrade for an existing tensioner/puller platform, this MonoLith™ system delivered more capacity, more current, and a wider temperature range than the original specification, all in the same footprint.
Why It Matters
Exact Envelope, Better Performance
Matched the 31″ × 16″ × 16″ footprint while exceeding every electrical specification.
Extended Cold Weather Range
-40°C operational floor versus the -20°C requirement, expanding deployment into cold climate applications.
10% More Capacity Than Spec
220 Ah and 23 kWh usable against 200 Ah and 20 kWh targets.
Electrifying an existing platform or designing a new one?
We build drop-in and custom battery systems for industrial and utility equipment. Single units and small production runs welcome.
