MonoLith™ Rally
Battery System
High-Voltage Hybrid Power for the World’s Toughest Rally
See the SpecsProgram Context
What makes this program significant.

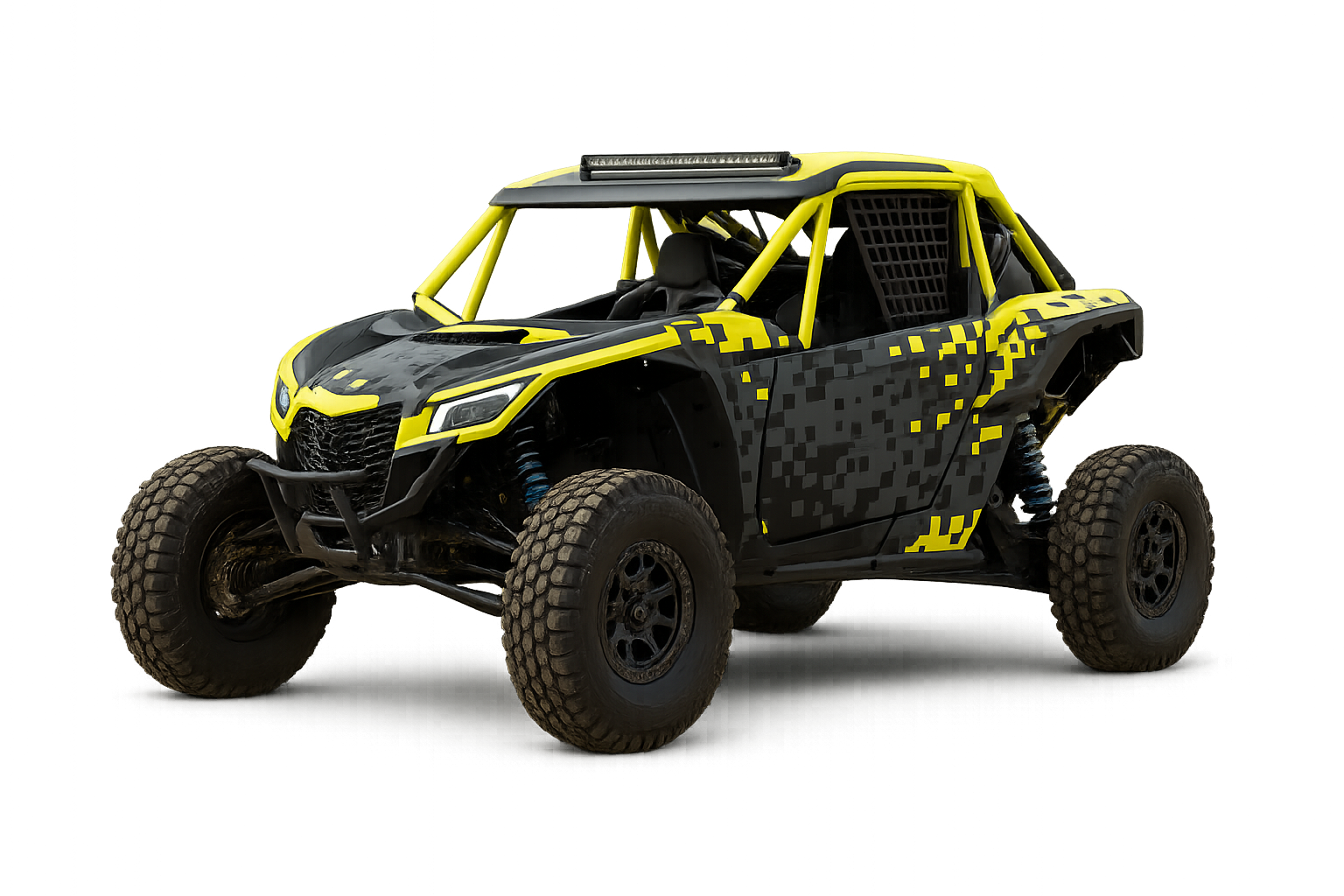

First Hybrid T3U Entry
Purpose-built for a class where no hybrid had previously competed, requiring a battery system with no established precedent.
Dakar Demands
5,000+ km across sand, rock, and extreme temperature swings. The battery must survive sustained vibration, thermal cycling, and full-speed desert impacts.
Compact High-Voltage Architecture
773V peak in a package smaller than the original spec envelope, liquid-cooled and FIA-compliant.
Performance Specifications
Hover over any specification to explore its performance envelope.
Usable energy optimized for hybrid rally stage demands
Peak bus voltage under full charge
Sustained output for high-speed desert racing
Regenerative and external charge capability
System mass including enclosure and cooling circuit
Gravimetric density optimized for motorsport weight targets
Requirements vs. Delivered
Every program requirement met or exceeded.
| SPECIFICATION | TARGET | MONOLITH™ DELIVERED | STATUS |
|---|---|---|---|
| Peak Power | ≥150 kW | 179 kW | EXCEEDED |
| Peak Charge Power | >30 kW | 33 kW | EXCEEDED |
| Peak Charge Current | As high as possible | High-current inlet support | EXCEEDED |
| Energy Capacity | 15–20 kWh | 17 kWh | EXCEEDED |
| Voltage Range | Nom ~650V, max <800V | Nom 662V, max 773V | EXCEEDED |
| Dimensions | 1250×700×160mm | 1046×609×170mm | EXCEEDED |
| Cooling | Liquid-cooled preferred | Liquid cooled | EXCEEDED |
| Construction | Rugged required | FIA-compliant ruggedized | EXCEEDED |
System Architecture
MonoLith™ platform engineered for FIA-compliant motorsport integration.
Compact Dimensions
- 1046mm × 609mm × 170mm
- Smaller than the 1250×700×160mm requested envelope
- Underbody integration optimized for rally chassis
Race-Tuned Energy Density
- 158 Wh/L volumetric
- 106 Wh/kg gravimetric
- MonoLith cell-to-pack architecture
Liquid Cooling
- Rim-bonded module architecture
- Validated cooling circuit
- FIA-compliant construction throughout
Built for the first hybrid T3U Dakar entry, this MonoLith™ system had to survive conditions that destroy conventional hardware: extreme desert heat, sustained vibration, and the physical punishment of high-speed off-road racing. It delivered on every requirement, in a smaller package than specified.
Why It Matters
First Hybrid T3U Battery
No prior template, no reference system. Built from the ground up for a class with no hybrid precedent.
Smaller Than Spec, More Than Required
Delivered a 1046×609×170mm pack against a 1250×700×160mm envelope while exceeding all electrical targets.
FIA-Compliant Ruggedization
Motorsport safety standards applied to a prototype build, not just performance specs.
Building a high-performance or motorsport battery system?
We build prototype and competition battery systems for advanced vehicle programs. High voltage, liquid cooled, documented interfaces.
